Our Capabilities
Precision Foundry ToolingEnd to End
From HPML patterns to GDC moulds, core boxes to VMC fixtures — we manufacture all foundry tooling in-house using 5 VMC machines and full CAD/CAM capability.
SERVICE 01

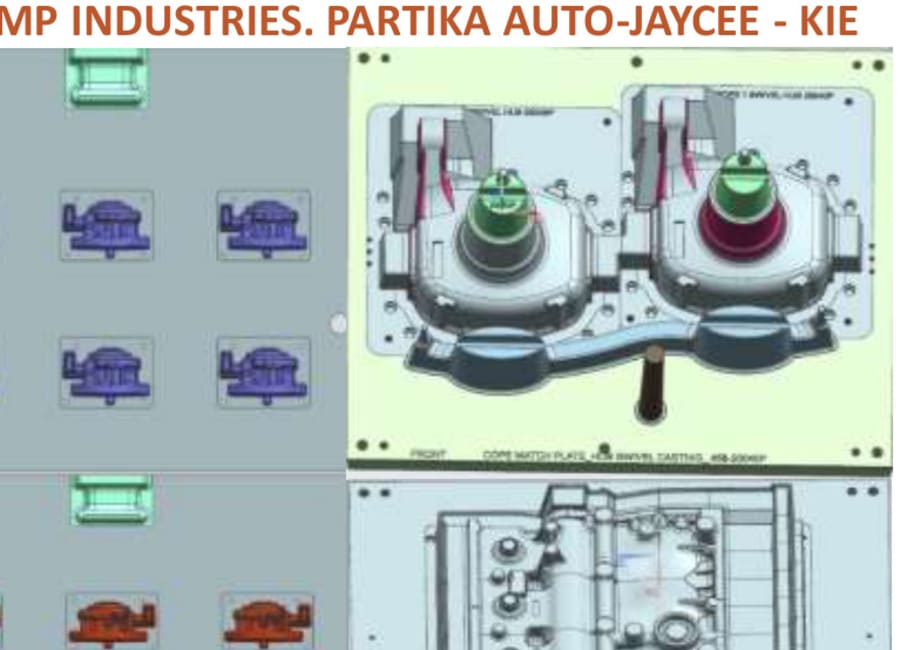

HPML Pattern Making
High-precision match plates and patterns for all major moulding lines
We manufacture precision HPML patterns for all major high-pressure moulding lines — DISA, SINTO, KOYO, ARPA, DARPA and SARVAMANGALA. Our VMC-machined match plates deliver consistent casting quality with minimal rejection rates across high-volume production runs.
- ±0.005mm dimensional accuracy, ±0.003mm repeatability
- Single, dual and multi-cavity match plate designs
- Accurate shrinkage allowances per alloy grade
- Proper draft angles and fillets for clean sand release
- Balanced runner, gate and riser systems
- CAD/CAM designed from 2D drawings or 3D models
Compatible With:
SERVICE 02

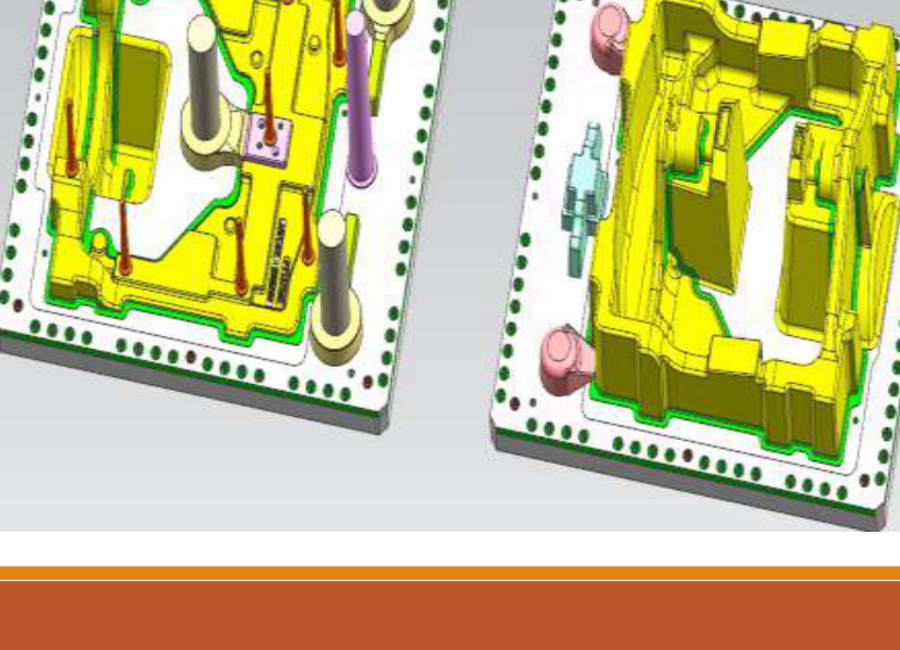

Core Box Manufacturing
Shell, cold, CO2 and no-bake core boxes for complex casting geometries
Core boxes are the backbone of complex internal casting geometries. We manufacture shell core boxes, cold core (isocure/no-bake) boxes, CO2 sand core boxes, and manual core boxes compatible with CFM, MAKWELL, VEE-PEE, SUSHA and SPAN MAKWELL machines.
- Shell core boxes (electrically heated platens)
- Cold core boxes — isocure / phenolic urethane process
- CO2 sand core boxes
- No-bake core boxes (furan resin)
- Manual sand core boxes
- Complex internal profiles with ejector pin systems
Compatible With:
SERVICE 03

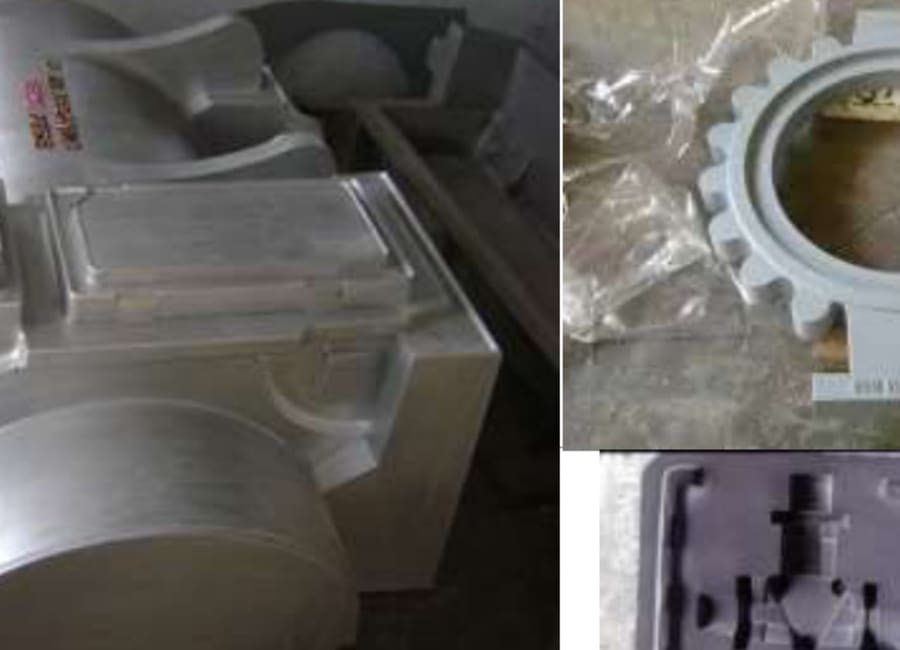

Die & Mould Manufacturing
Aluminium GDC moulds, rubber moulds and cold box die moulds for precision casting
From aluminium gravity die casting (GDC) moulds to rubber die moulds and cold box die moulds — we design and manufacture with precision. Our GDC moulds incorporate integrated cooling channels, optimised gating, and proper venting for consistent, defect-free castings.
- Aluminium gravity die casting (GDC) moulds
- Rubber die moulds for undercut geometries
- Cold box die moulds
- H13 / EN31 tool steel construction
- Integrated cooling channel design
- Overflow wells and venting slots
Compatible With:
SERVICE 04

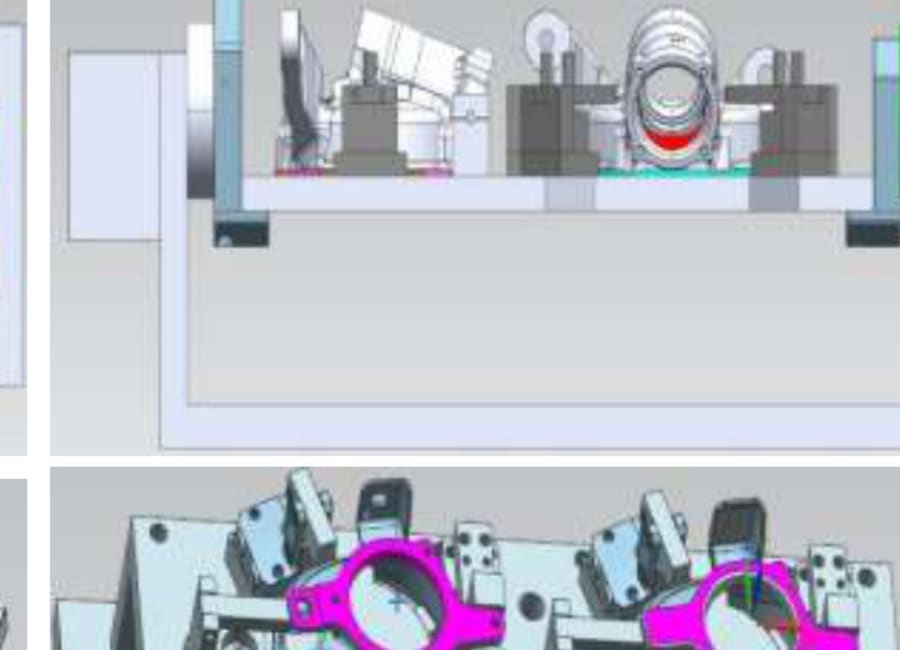

Fixture & VMC Machining
VMC fixtures, inspection gauges, leak testing machines and special purpose equipment
Our VMC machining capability extends beyond pattern making to custom fixtures, inspection gauges, and precision components. We manufacture 4-way VMC fixtures, GO/NO-GO gauges, leakage testing machines, shell core shooter machines, gravity die casting machines and special purpose equipment for foundries.
- 4-axis VMC machining fixtures for castings
- Hydraulic and pneumatic clamping options
- GO/NO-GO receiving gauges for casting inspection
- Profile gauges and template gauges
- Shell core shooter machines (pneumatic)
- Water and air leakage testing machines (up to 10 bar)
Ready to Discuss Your Requirements?
Share your 2D drawing, 3D model, or sample. We'll review and send a detailed quote within 48 hours.
